1. Introduction and Principles of DDR

DDR (Double Data Rate SDRAM) utilizes double data rate technology to transfer data on both the rising and falling edges of the clock cycle. This approach doubles the bandwidth compared to Single Data Rate (SDR) memory at the same clock frequency. For example, the first version of DDR had a clock frequency of only 100MHz, but its bandwidth reached 3.2GB/s, which is twice that of SDR. DDR continues to use the 2n prefetch technology, reducing costs and power consumption.

2. Evolution of DDR Technology Versions

From DDR to DDR2, DDR3, DDR4, and DDR5, DDR technology has been constantly evolving. The evolution of DDR technology mainly improves memory performance by increasing frequency, bandwidth, operating voltage, and capacity to meet the growing computing requirements.

• • DDR (2000): It increases the transmission rate by performing two data transmissions per clock cycle. Compared with traditional SDRAM technology, DDR has a significant speed-up effect, greatly increasing the memory bandwidth and enhancing the memory bandwidth of computer systems.
  • DDR2 (2003): It adopts a higher clock frequency and a higher data transfer rate, thus further improving the bandwidth and performance. It also introduced a new voltage specification (1.8V), reducing power consumption compared to DDR (2.5V).
  • DDR3 (2007): It has significant improvements in data transfer rate, clock frequency, and capacity, providing lower power consumption with a lower voltage (1.5V for DDR3 and 1.35V for DDR3L, a low-voltage version of DDR3).

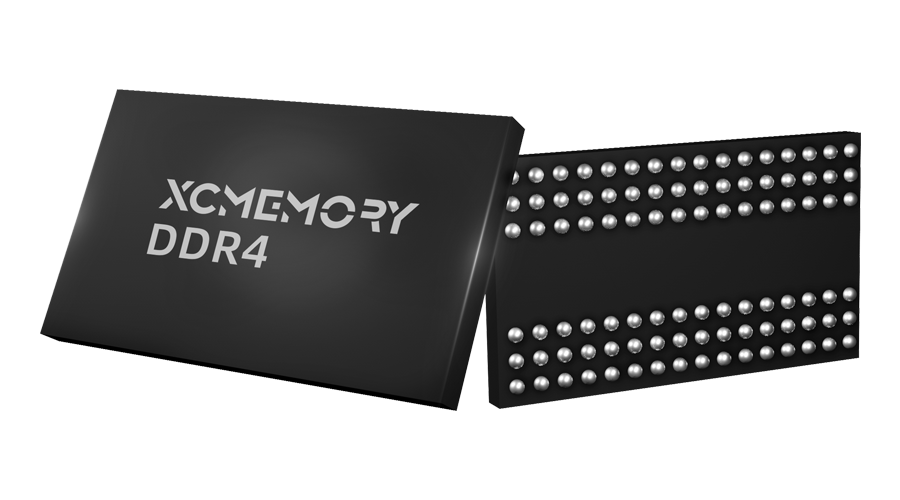

  • DDR4 (2014): It has a higher data transfer rate, a higher clock frequency, and supports a larger capacity compared to DDR3. It incorporated On-Die Termination (ODT) and Low Power Memory Access (LPA) technologies. ODT enhanced signal integrity, while LPA reduced power consumption and improved memory access efficiency. Additionally, it introduced features like high-density modules and Error Detection and Correction (ECC) for enhanced reliability.
  • DDR5 (2020): It further improves the data transfer rate, clock frequency, and capacity, and introduces some new technical features, such as enhanced Error Detection and Correction (ECC), enhanced energy-efficiency functions, etc. DDR5 uses the Multi-Bank Operating (MBO) technology, which can achieve simultaneous operation of multiple banks and improve memory access efficiency. It also introduced security technologies such as Data replication and Write Scrubbing, improving the reliability of the system.

3. Future Development of DDR

Future iterations of DDR are expected to incorporate advanced manufacturing processes and materials to enhance chip integration and stability. Emerging technologies like 3D stacking and AI-optimized architectures may also be integrated to meet escalating data processing demands.
At the same time, DDR will continue to optimize its interface protocols (e.g., increasing lane count and reducing latency), driving innovations in computer system architectures and supporting advancements in AI, machine learning, and high – performance computing.
