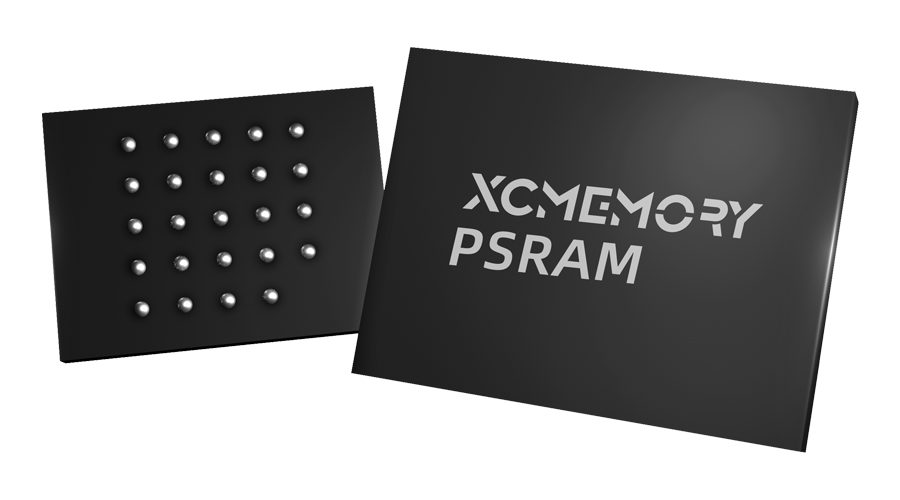

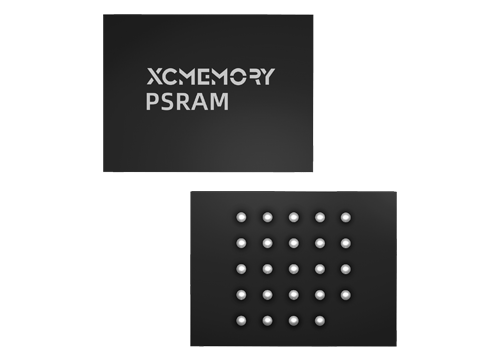

XC Memory's PSRAM delivers up to 666 Mbps bandwidth with multiple density options. Its simplified low-pin-count interface streamlines system design, while the compact 24-ball TFBGA package minimizes PCB footprint. Combined with competitive per-bit cost, this solution is ideal for cost-sensitive applications.
| Part Number | Density | Organization | Speed | Voltage | Temperature | Package | Product Status | |
|---|---|---|---|---|---|---|---|---|
GSR5W28DM
|
32Mb | x8 | 533/800Mbps | 1.8V | -40℃~85℃/-40℃~105℃ | BGA24 | MP | |
|
GSR5W28HM
|
32Mb | x8 | 533/800Mbps | 1.8V VDD & 1.2V VIO | -40℃~85℃/-40℃~105℃ | BGA24 | MP | |
|
GSR6W28DM
|
64Mb | x8 | 533/800Mbps | 1.8V | -40℃~85℃/-40℃~105℃ | BGA24 | MP | |
|
GSR6W28HM
|
64Mb | x8 | 533/800Mbps | 1.8V VDD & 1.2V VIO | -40℃~85℃/-40℃~105℃ | BGA24 | MP | |
|
GSR7W28DM
|
128Mb | x8 | 533Mbps | 1.8V | -40℃~85℃/-40℃~105℃ | BGA24 | MP |
